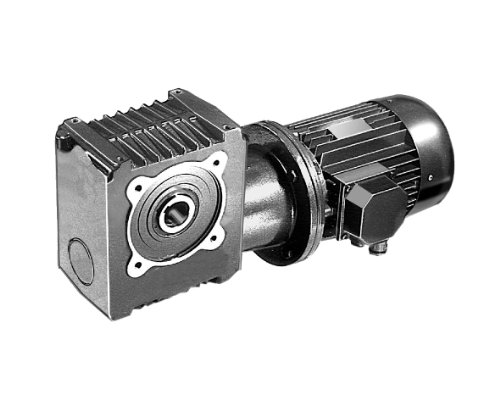

Worm geared motor ZMD/I gearbox size 63 version HL with hollow shaft n2=26.3 rpm 0.37kW 230/400V 50Hz .

Worm geared motor ZMD/I gearbox size 63 version HL with hollow shaft n2=26.3 rpm 0.37kW 230/400V 50Hz?General data: Versatile, high-performance gearboxes.

4 sizes, centre distance 40, 50, 63 and 80 mm. Centre distance 100 - 315 mm available on request.



Housing: High-quality grey cast iron, all sides machined and with mounting holes on 4 sides.



Gearing: 12 ratios from 5 to 83 : 1; worm shaft hardened and ground.

Worm gear made from special centrifugally cast bronze.



Efficiency factor: The efficiency factors stated in the selection tables are guideline values for properly run-in and lubricated gearboxes at operating temperature with nominal load and driving worm shaft. Proper running in is a crucial factor influencing the lifetime of the gearbox. The starting efficiency factor (nA) is, as the operating efficiency factor (h), depending on the lead angle.


From 0.75 kW efficiency class IE2.

Self-locking: Self-locking only occurs in worm gear units, when the unit cannot be driven from the output side. Worms with 4 and 6 threads sometimes permit transmission ratios for gearing up (i = 5 : 1 to 13,3 : 1). If a gearbox must be implicitly self-locking, or must implicitly not be self-locking, we urge you to contact us.

Bearing system: All gearbox shafts with generously dimensioned rolle bearings.



Lubrication: The gearboxes are lubricated for life using synthetic oil. Under normal operating conditions, no maintenance is required. The housing should be checked for leakages at an interval of approx. 2 years.



Ventilation: Size (centre distance) 40 is supplied without ventilation.

With the other gearboxes, the seal plug has to be exchanged with the separately packed venting filter.

Worm geared motor ZMD/I gearbox size 63 version HL with hollow shaft n2=26.3 rpm 0.37kW 230/400V 50Hz?
